Processor Intel Core i5-2410M Processor (2.30 GHz, 3 MB L3 cache, 2 cores/4 threads, 35W)* †
Up to 2.90 GHz with Intel Turbo Boost Technology
Operating System Windows 7 Professional 64-bit OS
HP Product Number XU061UT#ABA
Chipset Mobile Intel QM67 Express Chipset
Graphics AMD Radeon™ HD 6470M with 1 GB dedicated DDR3 video memory
Microsoft DirectX 11 (Shader Model 5.0) and OpenGL 4.0 capable
AMD Eyefinity Technology supports up to four independent displays
when using an HP Advanced Docking station
Display Internal 15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
External Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at
60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz"
Memory "Standard 4GB DDR3 PC3-10600 SDRAM (1333 MHz)
Two SODIMM slots supporting dual-channel memory"
Maximum Upgradeable to 16 GB with 8 GB SODIMMs in slots 1 and 2
Communications Integrated Intel 82579LM Gigabit* Network Connection (vPro configurations)
56K V.92 modem
Wireless Device Broadcom 43224AGN
802.11a/b/g/n
WiFi Adapter
Integrated support for 802.11 a, b, g, and n
Up to 300 mbps data rate
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
Expansion Card Slots ExpressCard/34 slot Supports ExpressCard/34
Integrated Smart Card
Reader
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Secure Digital/MMC slot Supports SD (Secure Digital),
SDHC, SDXC, MMC (MultiMedia Card), and MMC+
Storage 500GB 7200 rpm SMART SATA II Self Encrypting Drive
Optical Drive DVD+/-RW SuperMulti DL Drive
Interfaces ExpressCard/54 slot One
External monitor Two - (1) DisplayPort, (1) VGA
1394a One
Stereo microphone in One
Stereo headphone/line
out
One
Power connector One
RJ-11/modem One
RJ-45/Ethernet One
USB 3.0 Two
USB 2.0 HP 8460P: One (charging port)
HP 8560p: Two (includes one charging port)
eSATA/USB 2.0 combo One
Serial port One (HP EliteBook 8560p only)
Docking connector One
Secondary battery
connector
One
Touch-sensitive controls for volume up, volume down, and mute
Combo headphone/microphone jack
Audio SRS Premium Sound™
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Stereo headphone/line out
Stereo microphone/line in
Visual 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
Up to 2.90 GHz with Intel Turbo Boost Technology
Operating System Windows 7 Professional 64-bit OS
HP Product Number XU061UT#ABA
Chipset Mobile Intel QM67 Express Chipset
Graphics AMD Radeon™ HD 6470M with 1 GB dedicated DDR3 video memory
Microsoft DirectX 11 (Shader Model 5.0) and OpenGL 4.0 capable
AMD Eyefinity Technology supports up to four independent displays
when using an HP Advanced Docking station
Display Internal 15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
External Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at
60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz"
Memory "Standard 4GB DDR3 PC3-10600 SDRAM (1333 MHz)
Two SODIMM slots supporting dual-channel memory"
Maximum Upgradeable to 16 GB with 8 GB SODIMMs in slots 1 and 2
Communications Integrated Intel 82579LM Gigabit* Network Connection (vPro configurations)
56K V.92 modem
Wireless Device Broadcom 43224AGN
802.11a/b/g/n
WiFi Adapter
Integrated support for 802.11 a, b, g, and n
Up to 300 mbps data rate
HP Integrated Module
with Bluetooth 2.1+EDR
Wireless Technology
Bluetooth Specification v2.1+EDR compliant
Works with a wide range of Bluetooth devices
Expansion Card Slots ExpressCard/34 slot Supports ExpressCard/34
Integrated Smart Card
Reader
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Secure Digital/MMC slot Supports SD (Secure Digital),
SDHC, SDXC, MMC (MultiMedia Card), and MMC+
Storage 500GB 7200 rpm SMART SATA II Self Encrypting Drive
Optical Drive DVD+/-RW SuperMulti DL Drive
Interfaces ExpressCard/54 slot One
External monitor Two - (1) DisplayPort, (1) VGA
1394a One
Stereo microphone in One
Stereo headphone/line
out
One
Power connector One
RJ-11/modem One
RJ-45/Ethernet One
USB 3.0 Two
USB 2.0 HP 8460P: One (charging port)
HP 8560p: Two (includes one charging port)
eSATA/USB 2.0 combo One
Serial port One (HP EliteBook 8560p only)
Docking connector One
Secondary battery
connector
One
Touch-sensitive controls for volume up, volume down, and mute
Combo headphone/microphone jack
Audio SRS Premium Sound™
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Stereo headphone/line out
Stereo microphone/line in
Visual 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
Additional Information

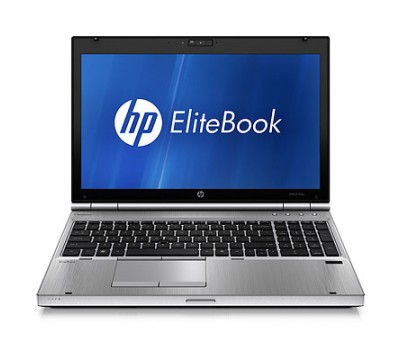

| Model | Elitebook 8560P |
|---|
